Cleito IWAAC Installation Guide for Tomcat-based applications

• Overview
• Prerequisites
• System requirements
• Setting up IWAAC
• Browser configuration
• Configuration options
• Tuning for production
• Failover
• Upgrading
• Entering license key
• Troubleshooting and problem resolution

Overview

Cleito IWAAC is a simple plugin that you install on each application relying upon Atlassian Crowd for user management (e.g. Jira, Confluence, Bitbucket, Bamboo, FishEye, Crucible).

The IWAAC plugin connects to your Active Directory Domain Controller and to your Crowd server to get Crowd SSO tokens for your AD domain users.

---

Prerequisites

1. The very first prerequisite before installing and configuring IWAAC is to make sure that your application is already integrated with your Crowd Server and that Crowd SSO is fully up and running. Please go to the Atlassian documentation for more details about the installation and integration of Atlassian Crowd with your application.


2. Please also check that the usernames in Crowd are identical to the usernames in Active Directory. For instance, if John Doe's AD logon name is john_doe@YOURDOMAIN.COM (or YOURDOMAIN\john_doe), then his username in Crowd has to be john_doe (or jOhn_Doe as it is not case-sensitive). This is a most-likely case since you probably linked your Tomcat-based application to an Active Directory / LDAP Directory Connector in Crowd's administration console. If you did not and configured an Internal, Delegated Authentication, Remote Crowd or Custom Directory Connector instead, you might want to configure the IWAAC properties so that the plugin automatically creates authenticated Active Directory domain users in the corresponding Crowd directory (if those users do not already exist in this very directory).

---

System requirements

IWAAC

• Cleito IWAAC 1.0 and later

End-user computer

• Any computer running Microsoft Windows (XP, Vista, 7, 8, 8.1, 10) or Mac OS^[1] (10.10 and later) and belonging to your enterprise Windows Domain
• Microsoft Internet Explorer, Microsoft Edge, Mozilla Firefox, Google Chrome and Apple Safari are supported web browsers

1. Please follow these instructions to add a Mac to an Active Directory domain.

Windows domain

• Active Directory Domain Services for Windows Server (2008 R2, 2012 R2, 2016, 2019)

Crowd server

• Atlassian Crowd 2.1 and later (up to v4.2)

Tomcat server

• Apache Tomcat 7.0.39 and later
• JDK 7, JDK 8 (except JDK 1.8.0_40 and 1.8.0_45), JDK 9, JDK 10, JDK 11
• Windows, Linux and Mac OS are supported Operating Systems
• For testing purposes, do not install your application on your end-user client computer as in such a case your browser might use the unsupported NTLM protocol instead of Kerberos

Firewall rules

Your Tomcat server must be able to connect to

• the Crowd server (default HTTP port 8095 or HTTPS port 8443)
• at least one of your Active Directory Domain Controllers (TCP/UDP on port 88 for Kerberos, TCP/UDP on ports 389 and 636 for LDAP and LDAPS connections)

---

Setting up IWAAC Kerberos SSO

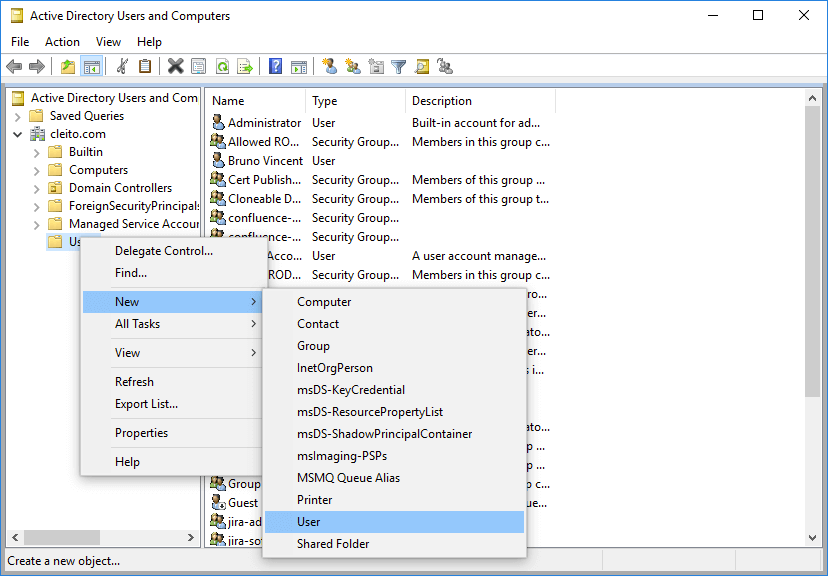

1. First of all, you must ask an AD domain administrator to create a user account for your Tomcat server in Active Directory, for instance tomcatsvc@YOURDOMAIN.COM

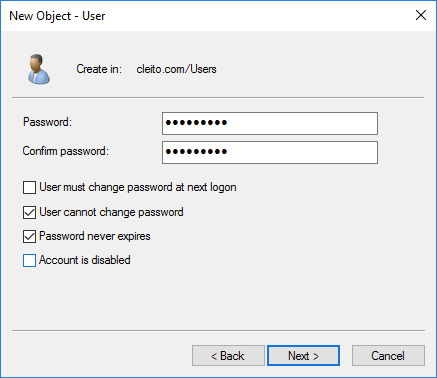

   Warning: Please make sure to type a very long and complex password and then check User cannot change password and Password never expires




2. Then ask your AD domain administrator to set a Service Principal Name (SPN) for your Tomcat server. The Fully Qualified Domain Name (FQDN) to be used MUST be the Host (A) record of your Tomcat server in Active Directory DNS.

   setspn -A HTTP/<tomcat_server_fqdn> <tomcat_server_username>

   For instance:
   setspn -A HTTP/tomcat-macos-srv.cleito.com tomcatsvc



   Warning: Please note that the HTTP/ string refers to the Kerberos HTTP service class which differs from the HTTP protocol. Both the HTTP protocol and the HTTPS protocol use the Kerberos HTTP service class. You should thus always use the HTTP/ string in the command above, even if your application's URL begins with https:// rather than http://.
   Info: About Tomcat server's FQDN

   Throughout the installation process, the Fully Qualified Domain Name (FQDN) of your Tomcat server MUST be the Host (A) record of this server in Active Directory DNS. Depending on your DNS configuration, it might be different from the hostname your users type in their browser address bar when accessing to your application.

   Please use the Resolve-DnsName command in a Powershell command prompt to determine the Host (A) record of your server.

   Resolve-DnsName -Name "hostname_in_application_url"

   For instance:
   Resolve-DnsName -Name "tomcat.cleito.com"



   Info: What if you run Tomcat behind Apache, a reverse proxy or a load balancer?

   If you run Tomcat behind a reverse proxy or a load balancer, you MUST use the FQDN (Host (A) record) of the URL's hostname when running the setspn command. For instance:

   setspn -A HTTP/reverseproxy-application-vip.cleito.com tomcatsvc
3. Finally ask your AD domain administrator to generate a keytab file for your Tomcat server. A keytab file is a piece of cryptographic information that will enable the IWAAC plugin to validate responses to Kerberos authentication challenges. Please be careful while typing this command as it is case sensitive.
   ktpass /out <keytab_filename> /mapuser <tomcat_server_username>@<YOURDOMAIN.COM> /princ HTTP/<tomcat_server_fqdn>@<YOURDOMAIN.COM> /pass <tomcat_server_userpassword> /kvno 0 /ptype KRB5_NT_PRINCIPAL

   For instance:
   ktpass /out tomcat.keytab /mapuser tomcatsvc@CLEITO.COM /princ HTTP/tomcat-macos-srv.cleito.com@CLEITO.COM /pass tomcatServerUserPassword /kvno 0 /ptype KRB5_NT_PRINCIPAL



   Info: About Kerberos encryption types

   By default, ktpass will generate a keytab file using the RC4 cryptographic algorithm.

   If you prefer to use AES-128 or AES-256 for security reasons, you will need to enable these encryption types in the Windows account of your Tomcat server before running the previous ktpass command with the following option: /crypto AES128-SHA1 or /crypto AES256-SHA1.



   If you choose to use AES-256 and your JDK version is prior to 1.8.0_161, you will also need to install the JCE Unlimited Strength Jurisdiction Policy Files in your environment:

   a. Download the files and instructions for Java 7 or Java 8.

   b. Remove the following JAR files from your $JAVA_HOME/jre/lib/security directory (or %JAVA_HOME%\jre\lib\security on Windows): local_policy.jar and US_export_policy.jar.

   c. Replace these two files with the ones included in the JCE Unlimited Strength Jurisdiction Policy Files download.
   Info: What if you run Tomcat behind Apache, a reverse proxy or a load balancer?

   If you run Tomcat behind a reverse proxy or a load balancer, you MUST use the FQDN (Host (A) record) of the URL's hostname when running the ktpass command. For instance:

   ktpass /out tomcat.keytab /mapuser tomcatsvc@CLEITO.COM /princ HTTP/reverseproxy-application-vip.cleito.com@CLEITO.COM /pass tomcatServerUserPassword /kvno 0 /ptype KRB5_NT_PRINCIPAL

   Then use the same keytab file that you have just generated for all applications (e.g. Jira, Confluence) running behind the same reverse proxy's A record.
4. (Optional) If you did not link your application to an Active Directory / LDAP Directory Connector in Crowd and if you plan to enable automatic user creation, you will have to perform this extra step. Go to the delegation tab of the Windows user you created for your Tomcat server and click on Trust this user for delegation to specified services only and then click on Use Kerberos only. Then click on Add. Then click on Users or Computers, type the name of your AD domain controller and click on Check Names. Then select the ldap service and click on OK. Finally click on Apply and then on OK.


   Still in the case where you did not link your application to an Active Directory / LDAP Directory Connector in Crowd and you plan to enable automatic user creation, you will also have to add the [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\NTDS\Parameters\LdapEnforceChannelBinding] registry key on your Active Directory Domain Controller and set its value to 1 as detailed in Microsoft's documentation.




5. Now, download and unzip the CLEITO IWAAC archive somewhere on your Tomcat server.


6. Copy the content of the conf directory to the conf directory of your Tomcat instance


7. Copy the CLEITO-IWAAC-2.2.0.jar file to the lib directory of your Tomcat instance



8. Copy the keytab file that was previously generated by your Windows domain administrator to the conf/IWAAC directory of your Tomcat instance


9. Then in the conf/IWAAC directory of your Tomcat instance, run setup_generic.sh (Linux, Mac OS) or setup_generic.bat (Windows) in a shell or terminal window:

   IWAAC Kerberos SSO Setup
   ------------------------
   [Java Version] 1.8.0_111
   [Kerberos] Enter your Windows Domain Name (e.g. DOMAIN.LOCAL): <YOURDOMAIN.COM>
   [Kerberos] Enter the Fully Qualified Domain Name (FQDN) of your Active Directory Domain Controller (e.g. dcsrv.domain.local): <ad_domain_controller_fqdn>
   [Kerberos] Enter the Fully Qualified Domain Name (FQDN) of the server hosting your application. This FQDN MUST be the A record of the server in Active Directory DNS (e.g. linuxsrv001.domain.local): <tomcat_server_fqdn>
   [Kerberos][INFO] Setting Service Principal Name: HTTP/<tomcat_server_fqdn>@<YOURDOMAIN.COM>
   [Kerberos] Enter Kerberos keytab filename (e.g. mykeytab.keytab): <keytab_file_name>
   [Crowd] Enter Crowd Server URL (e.g. http://crowdsrv.domain.local:8095/crowd): <crowd_server_url>
   [Crowd] Enter application name as defined in Crowd administration console (e.g. jirasdk): <application_name>
   [Crowd] Enter application password as defined in Crowd administration console (e.g. ********): <application_password>

   IWAAC Kerberos SSO Setup completed without an error

   For instance:

   IWAAC Kerberos SSO Setup
   ------------------------
   [Java Version] 1.8.0_111
   [Kerberos] Enter your Windows Domain Name (e.g. DOMAIN.LOCAL): CLEITO.COM
   [Kerberos] Enter the Fully Qualified Domain Name (FQDN) of your Active Directory Domain Controller (e.g. dcsrv.domain.local): win-2f2rum1cpin.cleito.com
   [Kerberos] Enter the Fully Qualified Domain Name (FQDN) of the server hosting your application. This FQDN MUST be the A record of the server in Active Directory DNS (e.g. linuxsrv001.domain.local): tomcat-macos-srv.cleito.com
   [Kerberos][INFO] Setting Service Principal Name: HTTP/tomcat-macos-srv.cleito.com@CLEITO.COM
   [Kerberos] Enter Kerberos keytab filename (e.g. mykeytab.keytab): tomcat.keytab
   [Crowd] Enter Crowd Server URL (e.g. http://crowdsrv.domain.local:8095/crowd): http://crowd.cleito.com:8095/crowd
   [Crowd] Enter application name as defined in Crowd administration console (e.g. jirasdk): jira
   [Crowd] Enter application password as defined in Crowd administration console (e.g. ********): ********

   IWAAC Kerberos SSO Setup completed without an error


10. The setup_generic script has generated four configuration files


    • jaas.conf: This file is used by IWAAC for Kerberos implementation. In most cases, it should not be edited.


    • krb5.conf: This file is also used by IWAAC for Kerberos implementation. In most cases, it should not be edited.


    • crowd.properties: This file is used by IWAAC to connect to the Crowd server. There are several options available that are detailed in the Configuration options section.


    • iwaac.properties: This file is used by IWAAC to restrict its functions to specific user agents, ip addresses, users or URLs. For example, you might want to keep an usual username and password authentication on the /rest URL. Or for performance reasons, you might want IWAAC to automatically authenticate your Active Directory domain users only when they hit your application's login page. This file is also used by IWAAC to connect to Active Directory in the case of fallback to basic authentication. All the options are detailed in the Configuration options section. See also the section titled Tuning for production for recommended settings values.


11. Finally we need to tell Tomcat to load IWAAC at startup. That setup MUST be done in the <Host> configuration of Tomcat which is available in the global server.xml configuration file.

    For instance, in Atlassian Confluence 7.3.5, edit conf/server.xml:


    <Host name="localhost" debug="0" appBase="webapps" unpackWARs="true" autoDeploy="false">
       <Valve className="com.cleito.iwaac.tomcat.TomcatValve" asyncSupported="true"/>
       <Context path="" docBase="../confluence" debug="0" reloadable="false" useHttpOnly="true">
          <Manager pathname="" />
          <Valve className="org.apache.catalina.valves.StuckThreadDetectionValve" threshold="60" />
       </Context>
       [...]
    </Host>
    In Atlassian Jira 8.4.0, edit conf/server.xml:


    <Host name="localhost" appBase="webapps" unpackWARs="true" autoDeploy="true">
       <Valve className="com.cleito.iwaac.tomcat.TomcatValve" asyncSupported="true"/>
       <Context path="" docBase="${catalina.home}/atlassian-jira" reloadable="false" useHttpOnly="true">
          <Resource name="UserTransaction" auth="Container" type="javax.transaction.UserTransaction"
          factory="org.objectweb.jotm.UserTransactionFactory" jotm.timeout="60"/>
          <Manager pathname=""/>
          [...]
       </Context>
    </Host>
    In Atlassian Bamboo 7.0.2, edit conf/server.xml:


    <Host name="localhost" appBase="webapps" unpackWARs="true" autoDeploy="true">
       <Valve className="com.cleito.iwaac.tomcat.TomcatValve" asyncSupported="true"/>
       <Context path="" docBase="${catalina.home}/atlassian-bamboo" reloadable="false" useHttpOnly="true">
          <Manager pathname=""/>
       </Context>
    </Host>
    In Atlassian Bitbucket Server 4.14.5, edit conf/server.xml:


    <Host name="localhost" appBase="webapps"
          unpackWARs="true" autoDeploy="true"
          xmlValidation="false" xmlNamespaceAware="false">
       <Valve className="com.cleito.iwaac.tomcat.TomcatValve" asyncSupported="true"/>
          [...]
    </Host>
    In Atlassian Crowd console 4.0.0, edit apache-tomcat/conf/server.xml:


    <Engine defaultHost="localhost" name="Catalina">
       <Host appBase="webapps" autoDeploy="true" name="localhost" unpackWARs="true">
          <Valve className="com.cleito.iwaac.tomcat.TomcatValve" asyncSupported="true"/>
       </Host>
    </Engine>
    (Please also make sure to apply the recommended setting for Crowd console in Tuning for production)


12. Restart Tomcat and follow the browser configuration instructions to complete the installation


13. Now, open your web browser and enter your application's URL, e.g. http://tomcat.yourdomain.com.

    Congratulations, you are already authenticated!



    If this installation procedure does not seem to work in your environment, please check the troubleshooting section.


    Info: What if you want to login as a different user?

    There might be cases where you would like to login as another user than the current Active Directory domain user. In such a case, follow the configuration instructions of the section titled Tuning for production, then open your web browser and type your application's login page URL with the following extra parameter: cleito-iwaac-auth=false

    For instance: http://tomcat.yourdomain.com/login.jsp?cleito-iwaac-auth=false

---

Browser configuration

The browsers of your Active Directory domain users must be configured so as to automatically respond to Kerberos authentication challenges. In the next section, we describe how to manually configure some of the most popular corporate web browsers. This manual configuration can be automated by your Active Directory domain administrator with a Group Policy Object.

Windows clients

Microsoft Internet Explorer

1. Open Internet Explorer, then click Tools > Internet options > Security > Local intranet > Sites and click Advanced


2. Add your domain extension to the Local intranet zone, for instance http://*.yourdomain.com and/or https://*.yourdomain.com



Mozilla Firefox

1. Open Firefox, then type about:config in the adress bar and click I'll be careful, I promise!


2. Type network.negotiate-auth.trusted-uris in the filter bar and set this setting to .yourdomain.com



3. (Optional) If you did not link your application to an Active Directory / LDAP Directory Connector in Crowd and if you plan to enable automatic user creation, you will also have to set the network.negotiate-auth.delegation-uris property to .yourdomain.com

Google Chrome

Google Chrome's support for Kerberos authentication relies on Internet Explorer's configuration. Please follow configuration instructions for Internet Explorer and then start Google Chrome.

If Internet Explorer does not seem to be installed on your workstation, click Start Menu > Control Panel > Network and Internet > Internet Options > Security > Local intranet > Sites > Advanced. Then add your domain extension to the Local intranet zone, for instance http://*.yourdomain.com

(Optional) If you did not link your application to an Active Directory / LDAP Directory Connector in Crowd and if you plan to enable automatic user creation, you will also have to edit the [HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Google\Chrome\AuthNegotiateDelegateWhitelist] registry key on your workstation and set its value to *.yourdomain.com


If you cannot find that registry key, please follow these steps:

1. Download the policy templates from https://dl.google.com/dl/edgedl/chrome/policy/policy_templates.zip
2. Run gpedit.msc to open the local group policy management
3. Go to Local Computer Policy > Computer Configuration > Administrative Templates and right click on Administrative Templates
4. Click Add/Remove Templates, then click the Add button and select windows/adm/en-US/chrome.adm from the unzipped policy_templates archive you previously downloaded
5. Go to Local Computer Policy > Computer Configuration > Administrative Templates > Classic Administrative Templates (ADM) > Google > Google Chrome > Policies for HTTP Authentication > Kerberos delegation server whitelist
6. On the Kerberos delegation server whitelist window, click Enabled and enter *.yourdomain.com in the field named Kerberos delegation server whitelist
7. Then restart Chrome and type chrome://policy in the address bar
8. Check that you now see the AuthNegotiateDelegateWhitelist key in Windows registry editor

Microsoft Edge

Microsoft Edge's support for Kerberos authentication relies on Internet Explorer's configuration. Please follow configuration instructions for Internet Explorer and then start Microsoft Edge.

If Internet Explorer does not seem to be installed on your workstation, click Start Menu > Control Panel > Network and Internet > Internet Options > Security > Local intranet > Sites > Advanced. Then add your domain extension to the Local intranet zone, for instance http://*.yourdomain.com

Mac OS clients

Apple Safari

Cleito IWAAC works out of the box on Safari and does not require any further configuration.

Mozilla Firefox

1. Open Firefox, then type about:config in the adress bar and click I'll be careful, I promise!


2. Type network.negotiate-auth.trusted-uris in the filter bar and set this setting to .yourdomain.com



3. (Optional) If you did not link your application to an Active Directory / LDAP Directory Connector in Crowd and if you plan to enable automatic user creation, you will also have to set the network.negotiate-auth.delegation-uris property to .yourdomain.com

Google Chrome

In a terminal, go to your user's Library/Preferences folder and set the AuthServerWhitelist property to *.yourdomain.com
(Optional) If you did not link your application to an Active Directory / LDAP Directory Connector in Crowd and if you plan to enable automatic user creation, you will also have to set the AuthNegotiateDelegateWhitelist property to *.yourdomain.com

Microsoft Edge

In a terminal, go to your user's Library/Preferences folder and set the AuthServerAllowlist property to *.yourdomain.com
(Optional) If you did not link your application to an Active Directory / LDAP Directory Connector in Crowd and if you plan to enable automatic user creation, you will also have to set the AuthNegotiateDelegateAllowlist property to *.yourdomain.com

---

Configuration options

crowd.properties

This file is used by IWAAC to connect to the Crowd server.

Attributes of the IWAAC crowd.properties file

Attribute	Description	Default Value
application.name	The name of your application as specified in the Crowd server, e.g. jira
application.password	The password of your application as specified in the Crowd server
crowd.base.url	The URL of the Crowd server, e.g. http://localhost:8095/crowd
cookie.domain	Set this property to override the SSO Domain set in the Crowd server, e.g. .internal.cleito.com
cookie.tokenkey	The SSO cookie name for this application
validation_factor.remote_address	Defines whether the client's or latest proxy's IP address will be used as a validation factor for Crowd SSO tokens	true
validation_factor.x-forwarded-for	Defines whether the real client's IP address will be used as a validation factor for Crowd SSO tokens	true
http.proxy.host	The FQDN of the proxy server used to transport REST traffic to the Crowd server, e.g. internal-proxy.cleito.com
http.proxy.port	The port of the proxy server used to transport REST traffic to the Crowd server, e.g. 3128
http.proxy.username	The username used to authenticate with the proxy server
http.proxy.password	The password used to authenticate with the proxy server
http.max.connections	The maximum number of HTTP connections in the connection pool for communication with the Crowd server	20
http.timeout	The HTTP connection timeout (milliseconds) used for communication with the Crowd server. A value of zero indicates that there is no connection timeout	5000

iwaac.properties

This file is used by IWAAC to restrict its functions to specific user agents, ip addresses, users or URLs, and to enable fallback to basic authentication.

Attributes of the iwaac.properties file

Attribute	Description	Available since version
iwaac.agent.include.only	A list of comma separated user agent substrings, e.g. Windows NT, MSIE 11 If this property is not null, then Integrated Windows Authentication will only apply to Active Directory domain users connecting from browsers whose user agent contains at least one of the substrings in the specified list.	1.1
iwaac.agent.exclude	A list of comma separated user agent substrings, e.g. iPad, Android If this property is not null, then Integrated Windows Authentication will not apply to Active Directory domain users connecting from browsers whose user agent contains at least one of the substrings in the specified list.	1.1
iwaac.ip.include.only	A list of comma separated IP addresses or IPv4 CIDR notations, e.g. 10.211.55.8,10.211.55.22,10.211.54.0/24 If this property is not null, then Integrated Windows Authentication will only apply to Active Directory domain users connecting from the computers, proxy servers or subnetworks in the specified list.	1.2
iwaac.ip.exclude	A list of comma separated IP addresses or IPv4 CIDR notations, e.g. 10.211.55.8,10.211.55.22,10.211.54.0/24 If this property is not null, then Integrated Windows Authentication will not apply to Active Directory domain users connecting from the computers, proxy servers or subnetworks in the specified list. This is especially useful in a reverse-proxy architecture where internet users have to access to your internal application. You will also need to set this property when configuring application links between Atlassian products so as to exclude other applications that connect to your instance.	1.2
iwaac.uri.include.only	A list of comma separated URI, e.g. /secure,/protected If this property is not null, then Integrated Windows Authentication will only occur when the Active Directory domain users hit the URI in the specified list. This is especially useful for performance reasons, as by default IWAAC will apply to all URI, which might lead to a lot of connections to the Crowd server. The best practice is to apply Integrated Windows Authentication to the login page only, e.g. /login.jsp. Please note that you must not include the context path of your application in the specified values. For instance, if your application base url is http://yourdomain.com/jira, do not set the iwaac.uri.include.only property to /jira/login.jsp but to /login.jsp.	1.0
iwaac.uri.exclude	A list of comma separated URI, e.g. /rest,/api If this property is not null, then Integrated Windows Authentication will not occur when the Active Directory domain users hit the URI in the specified list. This is especially useful for URI requested by REST or SOAP clients. Please note that you must not include the context path or your application in the specified values. For instance, if your application base url is http://yourdomain.com/jira, do not set the iwaac.uri.exclude property to /jira/rest but to /rest.	1.0
iwaac.user.include.only	A list of comma separated Active Directory usernames, e.g. john_doe,jane_doe If this property is not null, then Integrated Windows Authentication will only apply to the Active Directory users in the specified list. This is especially useful for testing, as you might want to test IWAAC on a limited set of users before going live.	1.0
iwaac.user.exclude	A list of comma separated Active Directory usernames, e.g. john_doe,jane_doe If this property is not null, then Integrated Windows Authentication will not occur for Active Directory users in the specified list. This is especially useful for administrators who often log onto web applications using different usernames.	1.0
iwaac.add.user.to.groups	A list of comma separated Crowd groups, e.g. jira-users,jira-developers If this property is not null, then Active Directory domain users will automatically be added to these groups after a successful Kerberos authentication. Please note that the User Directory in your Atlassian application will still have to be synchronized with Crowd's directory before the application is actually aware of a new group membership.	1.4
iwaac.fallback.basic.enabled	Either true or false When set to true, users connecting from computers outside of the Active Directory domain will be able to enter their Active Directory credentials in a Basic Authentication pop up window. Please note that you must also complete the 4 next options.	1.1
iwaac.fallback.basic.dc.hostname	The fully qualified domain name of your Active Directory Domain Controller, e.g. dc1.cleito.com It is used by IWAAC to verify users credentials with the LDAP protocol in the case of basic authentication fallback.	1.1
iwaac.fallback.basic.dc.ssl	Either true or false When set to true, IWAAC will use LDAPS to verify users credentials in the case of basic authentication fallback.	1.1
iwaac.fallback.basic.dc.port	The LDAP or LDAPS port on your Active Directory Domain Controller, e.g. 389 or 636 Used by IWAAC only in the case of basic authentication fallback.	1.1
iwaac.fallback.basic.windows.domain	Your Windows domain name, e.g. CLEITO.COM Used by IWAAC only in the case of basic authentication fallback.	1.1
iwaac.fallback.basic.dc.timeout	The connection timeout (in milliseconds) to your Active Directory Controller, e.g. 1000 Used by IWAAC only in the case of basic authentication fallback.	1.4
iwaac.auto.create.user.in.crowd.enabled	Either true or false When set to true, IWAAC will automatically create successfully authenticated Active Directory domain users in the Crowd directory to which the application is linked. You do not need to use this option if your application is linked to an Active Directory / LDAP Directory connector in Crowd as in such a case, Active Directory domain users already exist in Crowd. Please note that the User Directory in your Atlassian application will still have to be synchronized with Crowd's directory before the application is actually aware of a new user creation. You must also complete the 3 next options if you wish to enable automatic user creation.	1.4
iwaac.auto.create.user.in.crowd.dc.hostname	The fully qualified domain name of your Active Directory Domain Controller, e.g. dc1.cleito.com It is used by IWAAC to get the Active Directory domain user's details (first name, last name, email address) that are required to create the user account in the application's directory in Crowd.	1.4
iwaac.auto.create.user.in.crowd.dc.ssl	Either true or false When set to true, IWAAC will use LDAPS to get the Active Directory domain user's details (first name, last name, email address) that are required to create the user account in the application's directory in Crowd.	1.4
iwaac.auto.create.user.in.crowd.dc.port	The LDAP or LDAPS port on your Active Directory Domain Controller, e.g. 389 or 636 Used by IWAAC to get the Active Directory domain user's details (first name, last name, email address) that are required to create the user account in the application's directory in Crowd.	1.4
iwaac.auto.create.user.in.crowd.timeout	The connection timeout (in milliseconds) to your Active Directory Controller, e.g. 1000 Used by IWAAC to get the Active Directory domain user's details (first name, last name, email address) that are required to create the user account in the application's directory in Crowd.	1.4
iwaac.auto.create.user.in.crowd.password.min.length	The minimum length for the random password of the user account to be created in the application's directory in Crowd, e.g. 8 Used by IWAAC only in the case of automatic user creation.	1.4
iwaac.auto.create.user.in.crowd.password.max.length	The maximum length for the random password of the user account to be created in the application's directory in Crowd, e.g. 16 Used by IWAAC only in the case of automatic user creation.	1.4
iwaac.auto.create.user.in.crowd.password.min.upper.alpha	The minimum number of uppercase alphabetic characters for the random password of the user account to be created in the application's directory in Crowd, e.g. 1 Used by IWAAC only in the case of automatic user creation.	1.4
iwaac.auto.create.user.in.crowd.password.min.lower.alpha	The minimum number of lowercase alphabetic characters for the random password of the user account to be created in the application's directory in Crowd, e.g. 1 Used by IWAAC only in the case of automatic user creation.	1.4
iwaac.auto.create.user.in.crowd.password.min.numeric	The minimum number of numeric characters for the random password of the user account to be created in the application's directory in Crowd, e.g. 1 Used by IWAAC only in the case of automatic user creation.	1.4
iwaac.auto.create.user.in.crowd.password.min.special	The minimum number of special characters for the random password of the user account to be created in the application's directory in Crowd, e.g. 1 Used by IWAAC only in the case of automatic user creation.	1.4

---

Tuning for production

This section lists recommended configuration values that you might want to set in iwaac.properties. These values have been tested on recent versions of Atlassian products. You should nevertheless keep in mind that there might be slight differences to apply on specific other versions.

Bamboo

Bitbucket

Confluence

Crowd console

Jenkins

Jira

Or

You should also remove the login gadget from Jira's home page. If you don't, users might see an authentication form on Jira's home page though they are already authenticated. Edit atlassian-jira/WEB-INF/classes/jpm.xml and set the jira.disable.login.gadget property to true:

---

Failover

Cleito IWAAC can be configured so as to provide your applications with a failover mechanism when your main Active Directory Domain Controller is down.

Edit krb5.conf in the conf/IWAAC directory of your Tomcat server and add another kdc property: Also edit iwaac.properties and add domain controllers as a list of comma separated values:

---

Upgrading

• If you need to upgrade Cleito IWAAC, replace CLEITO-IWAAC-1.x.jar with CLEITO-IWAAC-2.2.0.jar in Tomcat's lib directory, then restart Tomcat.
• If you need to upgrade Tomcat or your Atlassian application, please follow the steps below.
  1. Copy CLEITO-IWAAC-2.2.0.jar to the lib directory of the new Tomcat server.
  2. Copy the content of the conf/IWAAC directory of the current Tomcat server to the conf/IWAAC directory of the new Tomcat server.
  3. On the new Tomcat server, edit conf/IWAAC/jaas.conf and change the keyTab location.
  4. Finally edit the server.xml configuration file of the new Tomcat server and add the <Valve className="com.cleito.iwaac.tomcat.TomcatValve" asyncSupported="true"/> element in the <Host> section.

---

Entering license key

1. Go to the conf/IWAAC directory of your Tomcat instance and copy/paste your license key into the iwaac.license file


2. Restart Tomcat

---

Troubleshooting and problem resolution

Whatever your problem, please turn on FINE logging in the conf/logging.properties file of your Tomcat instance. Insert the following line at the end of the file:
IWAAC events will be logged into the logs/catalina.out file of your Tomcat instance. They are all prefixed by the [IWAAC] string so you can easily parse the generated log file.

When you have solved your problem, you can turn logging to the INFO level.

You can also turn on debug logging for Kerberos specific events.

Edit jaas.conf in the conf/IWAAC directory of your Tomcat server: Also edit bin/setenv.sh (Linux, Mac OS) or bin/setenv.bat (Windows) and insert the following line at the beginning of the file. Then restart Tomcat.

On Linux or Mac OS:
On Windows: Kerberos debug logs will appear in the logs/catalina.out file of your Tomcat instance. Please note that they are not prefixed by the [IWAAC] string.

Common problems

A Basic Authentication popup appears

Most likely cause: your web browser has not been configured for automatic Kerberos authentication or you did not use the A record of your Tomcat server throughout the installation process.
Resolution: follow the browser configuration instructions or start the configuration again with the A record of your Tomcat server.

DEBUG: [IWAAC] No valid credentials provided(Mechanism level: Attempt to obtain new ACCEPT credentials failed!)
Caused by: javax.security.auth.login.LoginException: Message stream modified (41)

Most likely cause: a change in the OpenJDK Kerberos client has been introduced in OpenJDK 1.8.0_242 and above, which requires to set a specific system property if you face that error message.
Resolution: edit bin/setenv.sh (Linux, Mac OS) or bin/setenv.bat (Windows) and insert the following line at the beginning of the file. Then restart Tomcat.

On Linux or Mac OS:
On Windows:

SEVERE: [IWAAC] GSSContext Target Name (service ticket) is null

Most likely cause: there is a known bug in JDK 1.8.0_40 and JDK 1.8.0_45 that prevents Kerberos authentication to succeed on Linux and Mac OS environments. This may also happen if you are trying to access to your application from the server or workstation on which it is installed.
Resolution: upgrade your JDK version or connect to your application from another computer.

SEVERE: [IWAAC] Service ticket could not be decrypted, exception is: Failure unspecified at GSS-API level (Mechanism level: Clock skew too great (37))

Most likely cause: there is a time desynchronization between your Tomcat server and the Active Directory controller.
Resolution: time synch your servers with NTP.

FINE: [IWAAC] Unexpected end of file from server

Most likely cause: that exception might occur when using a proxy between IWAAC and the Crowd server. Some proxies actually do not handle persistent connections (keep alive) correctly.
Resolution: in such a situation, disable keep alive in bin/setenv.sh (Mac OS, Linux) or bin/setenv.batand restart Tomcat.

On Linux or Mac OS:
On Windows:

FINE: [IWAAC] Read timed out

Most likely cause: that exception might occur when using a proxy between IWAAC and the Crowd server. Some proxies actually do not handle persistent connections (keep alive) correctly.
Resolution: in such a situation, disable keep alive in bin/setenv.sh (Mac OS, Linux) or bin/setenv.bat (Windows) and restart Tomcat.

On Linux or Mac OS:
On Windows:

INFO: org.apache.coyote.http11.AbstractHttp11Processor.process Error parsing HTTP request header

Most likely cause: the Kerberos ticket that is sent by the Active Directory domain user's browser is too large for Tomcat's HTTP headers buffer.
Resolution: edit conf/server.xml and extend the maxHttpHeaderSize attribute of Tomcat's HTTP Connector to a higher value (e.g. 64 KB), then restart Tomcat.

SEVERE: org.apache.coyote.http11.Http11Processor.service Error processing request
java.lang.IllegalArgumentException: An invalid domain [.yourdomain.com] was specified for this cookie

Most likely cause: Some versions of Tomcat embed a Cookie Processor Component that is not fully compliant with RFC 6265 and throws an exception when the IWAAC plugin tries to set a Crowd SSO cookie on a domain whose name starts with "." (e.g. .yourdomain.com)
Resolution: remove the leading "." character from the SSO domain value in the Administration > General Options of your Crowd server. For instance yourdomain.com instead of .yourdomain.com. Then, restart your Tomcat server.

Other issues
